Installing

You can install Junction by downloading a binary executable from here:

• github.com/luteberget/junction/releases/latest

There is no installation program, only a single executable that you can put wherever you want.

Building from source

If you would like to build Junction from source or modify the program, the source code can be downloaded from the Github repository at github.com/luteberget/junction. Building the project depends on the Rust compiler toolchain and a C++ compiler toolchain being installed on your system.

Usage

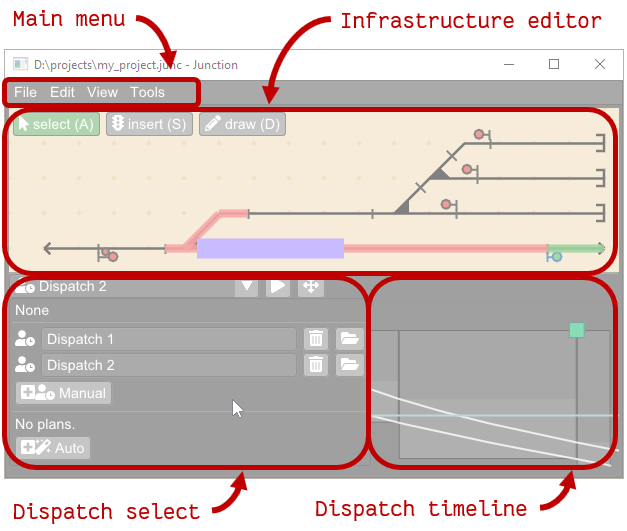

The main window consists of the following components:

• The main menu bar (see Main menu).
• The infrastructure editor (see Infrastructure).
• The dispatch selection menu (see Dispatch).
• The dispatch output diagram (see Dispatch).

Main menu

The main menu let you load, save, import, and export documents, and lets you open the following tool windows:

• File
  • Import/export railML files.
• Edit
  • Edit vehicles (see Vehicles).
  • Signal designer (see Signal designer).
• View
  • Log view (see Log).
  • Model inspector (see Model inspector).
  • Configure settings (see Settings).
